ZeroMQ Practice#

ZeroMQ is a high-performance asynchronous messaging library or concurrency framework. It abstracts the complex underlying network communication details and provides a range of flexible messaging patterns, making it easier to build complex distributed applications.

Core Concepts of ZeroMQ: Patterns, Abstraction, and Performance#

Unlike traditional centralized message brokers, ZeroMQ advocates a more decentralized (brokerless) or distributed design philosophy (of course, brokers can also be built on top of it). Its core advantages include:

  1. Messaging Patterns: ZeroMQ does not require users to directly manipulate raw sockets, dealing with connection, sending, receiving, error handling, retries, and other details. Instead, it offers several classic, out-of-the-box messaging patterns. Each pattern comes with built-in communication logic and extensibility capabilities; you just need to choose the pattern that fits your scenario.

    • Request/Reply (REQ/REP): The classic client/server model. REQ sends requests, and REP receives requests and replies. Simple and intuitive.
    • Publish/Subscribe (PUB/SUB): A data distribution model. PUB publishes messages to a topic, and multiple SUBs subscribe to the topics of interest and receive messages. It implements one-to-many broadcasting.
    • Push/Pull (PUSH/PULL): A work distribution and collection model. PUSH pushes tasks to multiple PULL workers, and PULL workers pull tasks to execute. It achieves many-to-many load balancing and result collection.
    • Pair (PAIR): The simplest point-to-point model. There is no built-in pattern logic, typically used for fixed one-to-one connections. These patterns are the essence of ZeroMQ, providing a much higher level of abstraction than raw sockets.

  2. Enhanced Sockets: ZeroMQ's sockets are not the same as traditional sockets. They are endpoints of patterns. Users do not need to worry about underlying connection establishment, disconnection, message queue management, error handling, etc.; ZeroMQ handles it internally. You just need to bind or connect to a specified address and then send or recv messages.

  3. High Performance and Scalability: ZeroMQ was designed with performance in mind from the start. It uses asynchronous I/O, intelligent message batching, and routing to avoid many of the bottlenecks of traditional message queues. Its decentralized nature also means there is no single point of pressure and failure risk from a central broker (unless you choose to build a broker).

Core Components of ZeroMQ: Context, Socket, Poller#

  1. Context:

    • The manager of the ZeroMQ runtime environment, responsible for resource allocation and management, including underlying I/O threads.
    • You can think of Context as the factory of ZeroMQ; all sockets must be created through the Context (context.socket(...)).
    • Typically, an application or a thread only needs to create one Context.

  2. Socket:

    • The main object for message transmission in ZeroMQ.
    • Each socket has a specific type (e.g., zmq.REQ, zmq.PUB, etc.), which determines the messaging pattern the socket follows.
    • Sockets can bind to an address (usually on the server side) to listen for connections.
    • Sockets can connect to an address (usually on the client side) to initiate a connection.
    • Messages are sent and received using the send() and recv() methods. ZeroMQ messages are byte strings, and send_string()/recv_string() provide convenient string handling. Messages can consist of multiple frames (send_multipart()/recv_multipart()).
    • Note: By default, socket.send() and socket.recv() are blocking. They will pause the execution of the current thread if the buffer is full or there are no messages.

  3. Poller:

    • In traditional synchronous (blocking) ZeroMQ programming, if you need to simultaneously listen for messages from multiple sockets, directly calling recv() on one socket will block, preventing you from processing messages from other sockets.
    • zmq.Poller is used to solve this problem. You can register multiple sockets and events of interest (e.g., zmq.POLLIN indicates that there are messages to read) with the Poller.
    • Then call the poller.poll(timeout) method. This method will block, but it monitors all registered sockets. Once a socket has an event of interest, poll() will return, indicating which sockets are ready (e.g., ready to call recv()).
    • Important: When using asynchronous ZeroMQ (zmq.asyncio), you typically do not need to directly use zmq.Poller, as the asynchronous framework (asyncio event loop) will handle the underlying event monitoring and scheduling.

ZeroMQ Transport Protocols: tcp, ipc, inproc#

  1. tcp://:

    • Based on the TCP/IP protocol.
    • Used for inter-process or inter-machine network communication.
    • Address format: tcp://host:port (e.g., tcp://127.0.0.1:5555 or tcp://*:5555).

  2. ipc://:

    • Based on local inter-process communication (IPC) mechanisms (e.g., Unix Domain Sockets or Windows Named Pipes).
    • Used for communication between different processes on the same machine.
    • Generally faster than tcp://.
    • Address format: ipc://pathname (e.g., ipc:///tmp/my_socket).

  3. inproc://:

    • Based on in-process memory passing.
    • Can only be used for communication between different threads or coroutines within the same operating system process.
    • Extremely fast, with no network overhead.
    • Very important: An inproc:// address bind in one process is completely invisible and cannot be connected from other processes.
    • Address format: inproc://transport_name (e.g., inproc://my_internal_channel).
  • Code Example

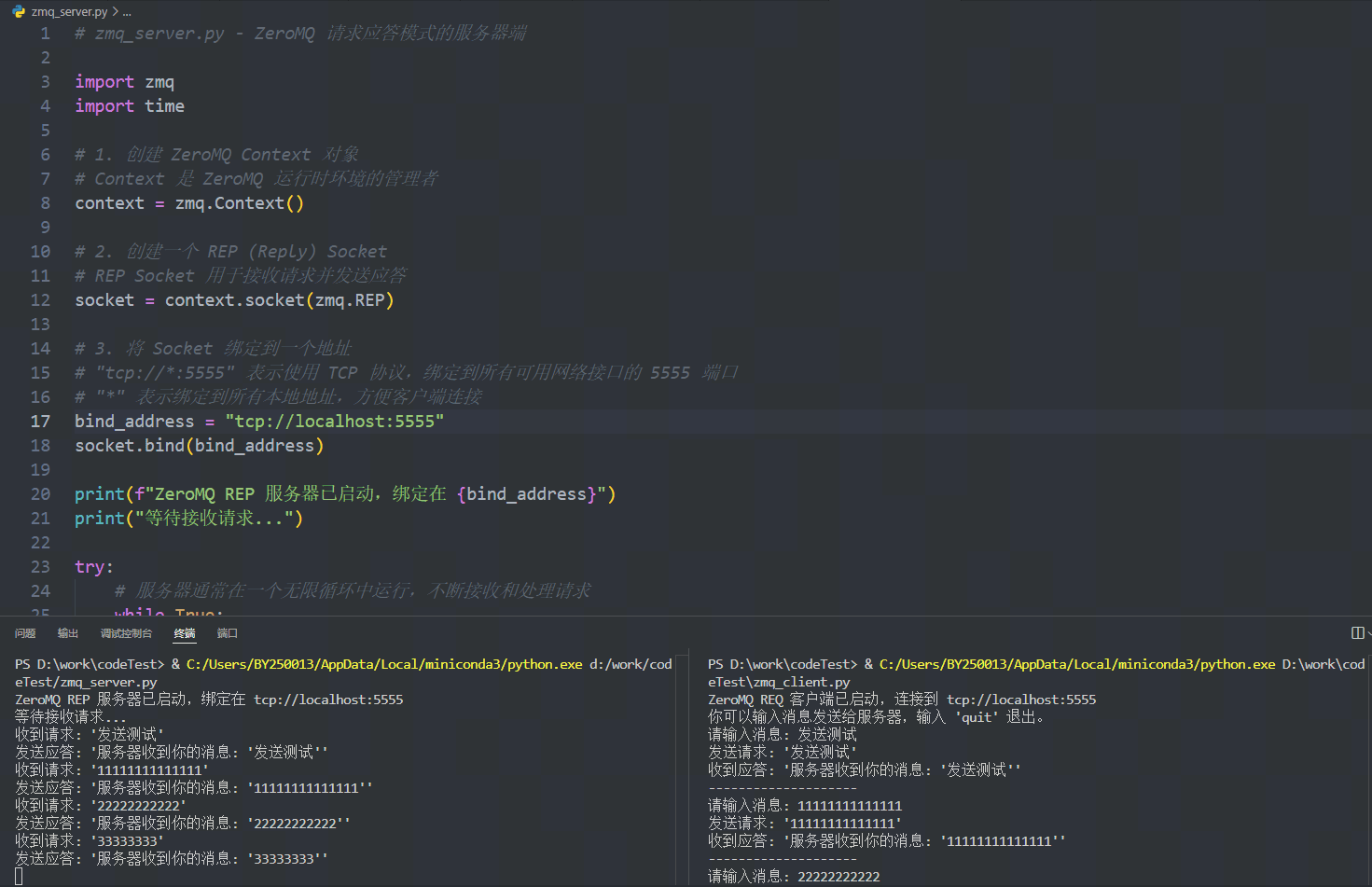

# zmq_server.py - ZeroMQ Request-Reply Mode Server

import zmq
import time

# 1. Create a ZeroMQ Context object
# Context is the manager of the ZeroMQ runtime environment
context = zmq.Context()

# 2. Create a REP (Reply) Socket
# REP Socket is used to receive requests and send replies
socket = context.socket(zmq.REP)

# 3. Bind the Socket to an address
# "tcp://*:5555" means using TCP protocol, binding to port 5555 on all available network interfaces
# "*" means binding to all local addresses, making it easy for clients to connect
bind_address = "tcp://localhost:5555"
socket.bind(bind_address)

print(f"ZeroMQ REP server started, bound to {bind_address}")
print("Waiting to receive requests...")

try:
    # The server typically runs in an infinite loop, continuously receiving and processing requests
    while True:
        # 4. Receive a request
        # socket.recv_string() will block until a string message is received
        message = socket.recv_string()
        print(f"Received request: '{message}'")

        # Simulate processing the request
        time.sleep(1) # Pretend the server needs to process for a while

        # 5. Prepare the reply message
        reply_message = f"Server received your message: '{message}'"

        # 6. Send the reply
        # socket.send_string() will send a string reply
        # In the REP-REQ mode, the REP Socket must receive a request before sending a reply
        socket.send_string(reply_message)
        print(f"Sent reply: '{reply_message}'")

except KeyboardInterrupt:
    print("\nDetected Ctrl+C, shutting down the server...")
finally:
    # Clean up ZeroMQ resources
    socket.close()
    context.term()
    print("Server has been safely shut down.")

# zmq_client.py - ZeroMQ Request-Reply Mode Client

import zmq

# 1. Create a ZeroMQ Context object
context = zmq.Context()

# 2. Create a REQ (Request) Socket
# REQ Socket is used to send requests and receive replies
socket = context.socket(zmq.REQ)

# 3. Connect to the server's address
# "tcp://localhost:5555" means using TCP protocol, connecting to port 5555 on localhost
# If the server is on another machine, replace 'localhost' with the actual IP address of the server
connect_address = "tcp://localhost:5555"
socket.connect(connect_address)

print(f"ZeroMQ REQ client started, connected to {connect_address}")
print("You can enter messages to send to the server, type 'quit' to exit.")

try:
    # The client typically runs in a loop, allowing multiple messages to be sent
    while True:
        # Get user input
        user_input = input("Enter message: ")

        # Check if 'quit' is entered
        if user_input.lower() == 'quit':
            break

        # 4. Send a request
        # socket.send_string() will send the user input string message
        # In the REQ-REP mode, the REQ Socket must wait for a reply after sending a request; it cannot send requests continuously
        print(f"Sending request: '{user_input}'")
        socket.send_string(user_input)

        # 5. Receive a reply
        # socket.recv_string() will block until a reply message is received from the server
        reply_message = socket.recv_string()
        print(f"Received reply: '{reply_message}'")
        print("-" * 20) # Separator line

except KeyboardInterrupt:
    print("\nDetected Ctrl+C, shutting down the client...")
finally:
    # Clean up ZeroMQ resources
    socket.close()
    context.term()
    print("Client has been safely shut down.")

image.png|700x453

Asynchronous: zmq.asyncio#

The default ZeroMQ sockets are blocking. If a Python application is built on asyncio, calling blocking socket.recv() or socket.send() in a coroutine will pause the entire event loop, causing all other coroutines to be unable to run, nullifying the advantages of asynchronous programming.

The zmq.asyncio submodule was created to solve this problem. It provides an asynchronous version of ZeroMQ sockets, where its send() and recv() methods become awaitable.

Using zmq.asyncio:

  1. Import zmq.asyncio, usually aliasing it as azmq: import zmq.asyncio as azmq.
  2. Create an asynchronous Context: context = azmq.Context(). This Context will automatically sense and integrate with the current asyncio event loop.
  3. Create the Socket: socket = context.socket(socket_type). Sockets created from this Context have asynchronous characteristics.
  4. Use await to call asynchronous Socket methods in coroutines: await socket.send(...), await socket.recv(...).
  5. When a coroutine awaits an asynchronous Socket operation, if that operation cannot be completed immediately (e.g., no message received), the current coroutine will pause and yield control to the asyncio event loop, allowing the event loop to execute other prepared coroutines. Once the Socket operation is complete, the event loop will notify and resume that coroutine.

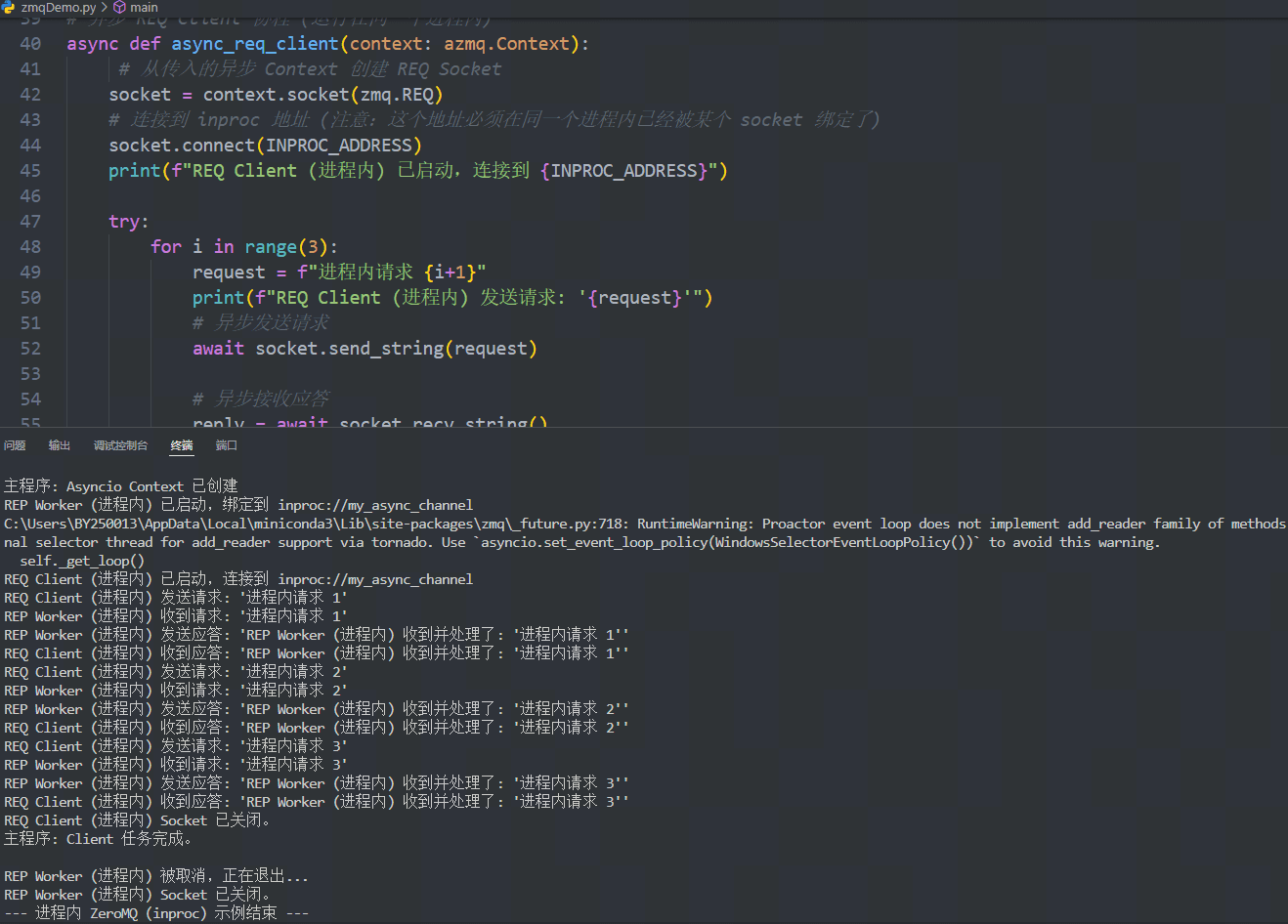

Asynchronous (Asyncio) Socket Example (Simplified inproc Communication):

# inproc_asyncio_example.py - Using inproc:// transport protocol within the same process

import asyncio
import zmq
import zmq.asyncio as azmq # Use the asynchronous version

# Define inproc address
INPROC_ADDRESS = "inproc://my_async_channel"

# Asynchronous REP Worker coroutine (running within the same process)
async def async_rep_worker(context: azmq.Context):
    # Create a REP Socket from the passed asynchronous Context
    socket = context.socket(zmq.REP)
    # Bind to the inproc address
    socket.bind(INPROC_ADDRESS)
    print(f"REP Worker (in-process) started, bound to {INPROC_ADDRESS}")

    try:
        while True:
            # Asynchronously receive requests
            message = await socket.recv_string()
            print(f"REP Worker (in-process) received request: '{message}'")

            # Simulate processing
            await asyncio.sleep(0.5)

            reply = f"REP Worker (in-process) received and processed: '{message}'"
            # Asynchronously send reply
            await socket.send_string(reply)
            print(f"REP Worker (in-process) sent reply: '{reply}'")

    except asyncio.CancelledError:
        print("\nREP Worker (in-process) cancelled, exiting...")
    finally:
        socket.close()
        print("REP Worker (in-process) Socket closed.")


# Asynchronous REQ Client coroutine (running within the same process)
async def async_req_client(context: azmq.Context):
     # Create a REQ Socket from the passed asynchronous Context
    socket = context.socket(zmq.REQ)
    # Connect to the inproc address (note: this address must already be bound by some socket in the same process)
    socket.connect(INPROC_ADDRESS)
    print(f"REQ Client (in-process) started, connected to {INPROC_ADDRESS}")

    try:
        for i in range(3):
            request = f"In-process request {i+1}"
            print(f"REQ Client (in-process) sending request: '{request}'")
            # Asynchronously send request
            await socket.send_string(request)

            # Asynchronously receive reply
            reply = await socket.recv_string()
            print(f"REQ Client (in-process) received reply: '{reply}'")
            await asyncio.sleep(0.1) # Wait a bit before sending the next request

    finally:
        socket.close()
        print("REQ Client (in-process) Socket closed.")

# Main asynchronous function to start and manage Worker and Client coroutines
async def main():
    # Create a single asynchronous Context in the main function
    # This Context will be used to create all sockets that need to communicate via inproc
    context = azmq.Context()
    print("Main program: Asyncio Context created")

    # Use asyncio.create_task to start Worker and Client coroutines
    # They will run concurrently in the same event loop, within the same process
    worker_task = asyncio.create_task(async_rep_worker(context))
    client_task = asyncio.create_task(async_req_client(context))

    # Wait for the Client task to complete its requests
    await client_task
    print("Main program: Client task completed.")

    # After the Client task is completed, cancel the Worker task to exit
    worker_task.cancel()
    try:
        await worker_task # Wait for the Worker task to respond to the cancellation signal
    except asyncio.CancelledError:
        print("Main program: Worker task has been cancelled.")

    # Cleanup of the Context is usually handled by asyncio.run(), or can be done manually with context.term()
    # context.term() # If managing the loop manually, need to term

# Entry point of the program
if __name__ == "__main__":
    print("--- In-process ZeroMQ (inproc) example starting ---")
    # Use asyncio.run to run the main asynchronous function
    # This will start the event loop and schedule worker_task and client_task in the same process
    asyncio.run(main())
    print("--- In-process ZeroMQ (inproc) example ended ---")

image.png|0x0

Suitable Scenarios for ZeroMQ#

  • Building communication between microservices: Providing flexible message routing and efficient transmission.
  • Distributed task queues: Using the PUSH/PULL pattern to distribute tasks to a worker cluster.
  • Data publishing and subscription systems: Using the PUB/SUB pattern to efficiently broadcast data to multiple consumers.
  • High-performance data pipelines: Quickly passing large volumes of messages between different application components.
  • Replacing complex raw socket programming: When complex communication topologies such as many-to-many or one-to-many are needed, ZMQ's patterns can greatly simplify the code.
  • Scenarios requiring high performance without introducing heavyweight brokers.
